AUTEL G-box 2 All Key Lost Adapter IMMO Tool Work with IM508/IM608

Autel G-box 2 All Key Lost Adapter IMMO Tool Work with IM508/IM608

• Designed for Mercedes-Benz DAS3 CAN EIS/EZS all keys lost
• Reduce time reading W204 ECU data & W207 EIS by over 85%
• No need to remove and reinsert the key for W221 & W164 after 2009 models
• Used for Faster Mercedes ECU data and EIS password calculation
• Reads and writes Bosch engine ECU on F-classis of BMW and MQB of Volkswagen.
• BMW DME/DDE ISN reading and writing in boot mode
• Compatible with IM608 or IM508 with XP400
• Compatible with Otofix XP1, IM2

Autel G-box2 is applied when all keys of Mercedes-Benz DAS3 CAN EIS/EZS are lost.

With this unit, the time of reading the ECU data of W204 and W207 is reduced 1/8 of the original, improving the ECU reading speed.

Moreover, the number of insertions and removals of W216 and W164 EISs after the year 2009 is reduced to zero, greatly simplifying the operation steps.

G-box2 needs to be used together with Autel Diagnostic Tablet for stable and reliable performance.

Autel G-Box2 Powerful Function

1. Mercedes-Benz All Keys Lost, Faster Password Calculation.

• 8x Faster Password Calculation For EIS W172, W204, W207;
• 4x Faster Password Calculation For EIS W209, W211, Etc.

2. Mercedes-Benz all Keys Lost, No More Repeated Insertions And Removals Of IR Simulator

W164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(Partial), W202(K)/ W208(K)/ W210(K), W203(K)/ W463(K)

3.Mercedes-Benz all Keys Lost, Direct programming on the vehicle without taking out the EIS to work on the bench, for all EIS models except:

EIS W164/-2008, W251/-2008, W221, W202(K)/W208(K)/W210(K), And W203(K)/W463(K),

4.BMW DME/DDE ISN Reading and Writing In Boot Mode

• 23 ECU Bosch models including MEVD / EDC17
• 6 ECU Siemens Models, including MSD / MSV motors

How to use Autel G-Box2?

A. OBDII Operation When All Keys of Mercedes-Benz Vehicle Are Lost

(This method is suitable for Mercedes-Benz W204 , W207, W216 and W164 EISs after the year 2009)

Connection Steps:

1. Connect the G-Box to vehicles's OBDII
2. Remove the fuse of vehicle EIS, Connect the Relay ports to the fuse using the supplied fuse cable
3. When the vehicle has an ELV, connect the K7 port and ELV plug using the supplied K-line cable
4. Connect the G-Box to the Autel Diagnostic Tablet

B. Desktop Operation When All Keys of Mercedes-Benz Vehicle are Lost

(This Method is suitable for all Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet.)

Connection Steps:

1. Connect the G-Box to the Mercedes-Benz EIS using the supplied DB15 Cable
2. Connect to the DC port of G-Box using a power adapter (DV 12V)
3. Connect the G-Box to the Autel Diagnostic Tablet

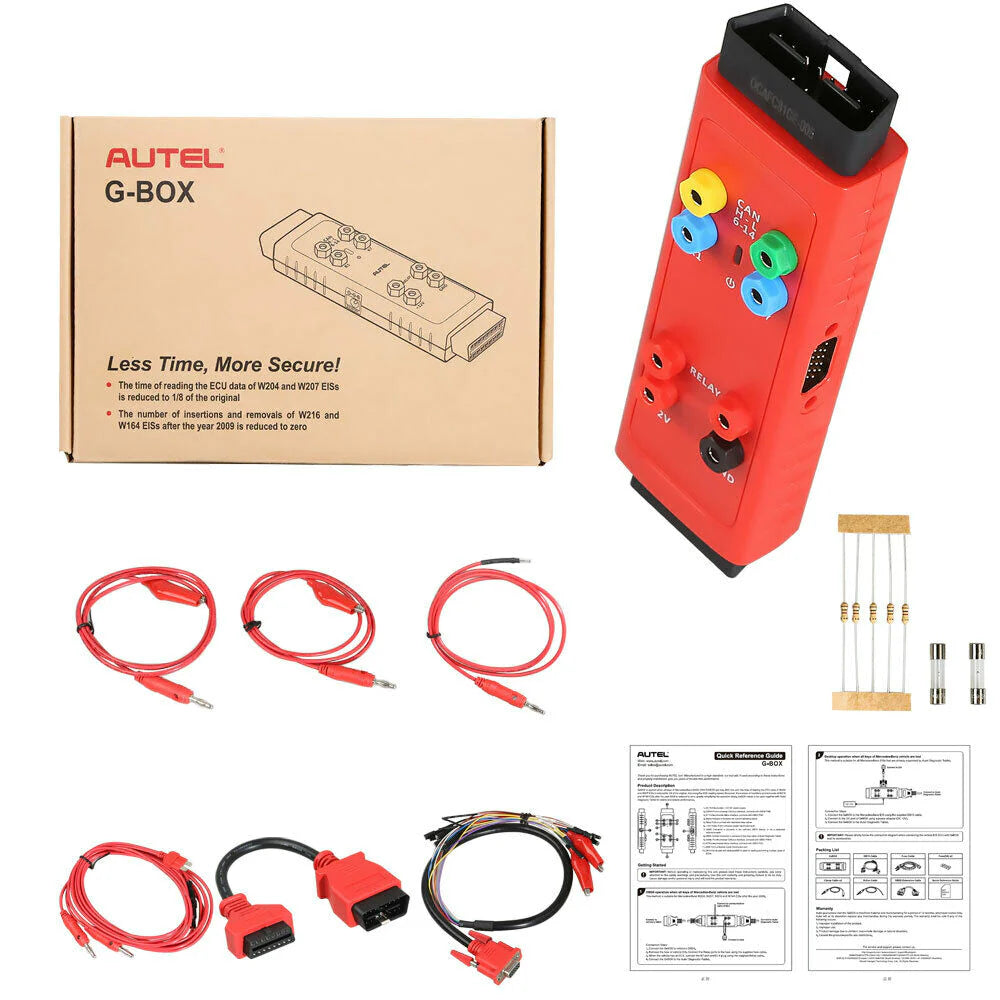

Autel G-box2 Package List

1PC x Autel G-BOX2

1PC x DB15 Cable

1PC x K-Line Cable

1PC x Fuse Cable

2PCs x Fuse (5A)

2PCs x Clamp Cable

1PC x OBDII Extension Cable

1PC x Quick Reference Guide
