Dark Slate Gray TOPDON ADAS Radar 3-in-1 Diagnostic Scan Tool

TOPDON ADAS Radar 3-in-1

by Topdon
$6,999.95 - $6,999.95
$6,999.95 Incl. GST
$6,999.95 - $6,999.95
$6,999.95 Incl. GST
Available for orders between $0 - $2,000 “zip
12 months intrest free online & up to 36 months instore. logo-NZD

Free Shipping

On Orders Over $129 NZ Wide & $249 Australia Wide T&C'S Apply

Delivery Time

With a target delivery time of 1-3 days, our nationwide shipping service ensures that all in-stock items are dispatched within 24 hours.

TOPDON ADAS Radar 3-in-1

The TOPDON ADAS Radar 3-in-1 Calibration Tool is an advanced device designed for calibrating radar systems in vehicles. It includes various components like the ACC radar target, corner reflector target, and a Doppler simulator, making it versatile for different systems such as adaptive cruise control, blind spot monitoring, and lane change assist. This tool supports a wide range of vehicle models from various manufacturers, ensuring broad compatibility and effectiveness in calibration tasks.


ADAS Radar 3 in 1 Calibration tool is used for radar system calibration, including ACC radar target, corner reflector target, doppler simulator, three-in-one main frame and accessories. Support calibration Adaptive cruise control system, blind spot monitoring system, lane change assist system, front corner radar system.

Features:

  • One machine with multiple functions, easy to switch between ACC radar reflector, corner reflector target and doppler simulator
  • A economical and practical option for calibrating some Radars (no need for main calibration frame, but note this kit cannot do cameras and other ADAS componets or cannot be upgraded to do them)

Vehicle Coverage:

  • ACC Radar Target, ACC (Adaptive Cruise Control), Mercedes-Benz, BMW, Audi, VW, Porsche, SKODA, Seat, Romeo, MINI, Jeep, Nissan,  Mitsubishi, Suzuki, Infiniti, Hyundai, Kia, BYD, GEELY, CHERY, etc
  • Corner Reflector, ACC (Adaptive Cruise Control), BSM (Blind Spot Monitoring), Toyota, Lexus, Honda, Acura, Mazda, Subaru, Mitsubishi, etc
  • Doppler Simulator, LCA (Lane Change Assist), FCR (Front Corner Radar) Volkswagen, Audi, SKODA, Seat, Mazda, etc.

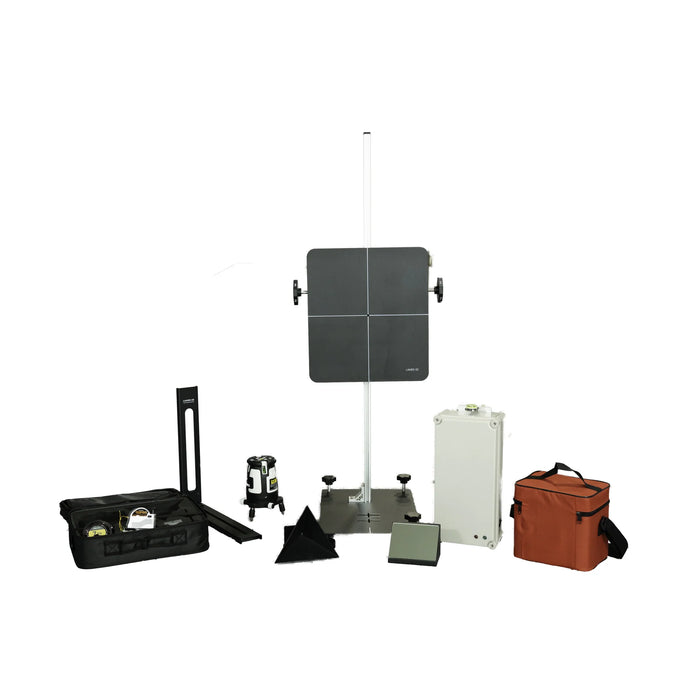

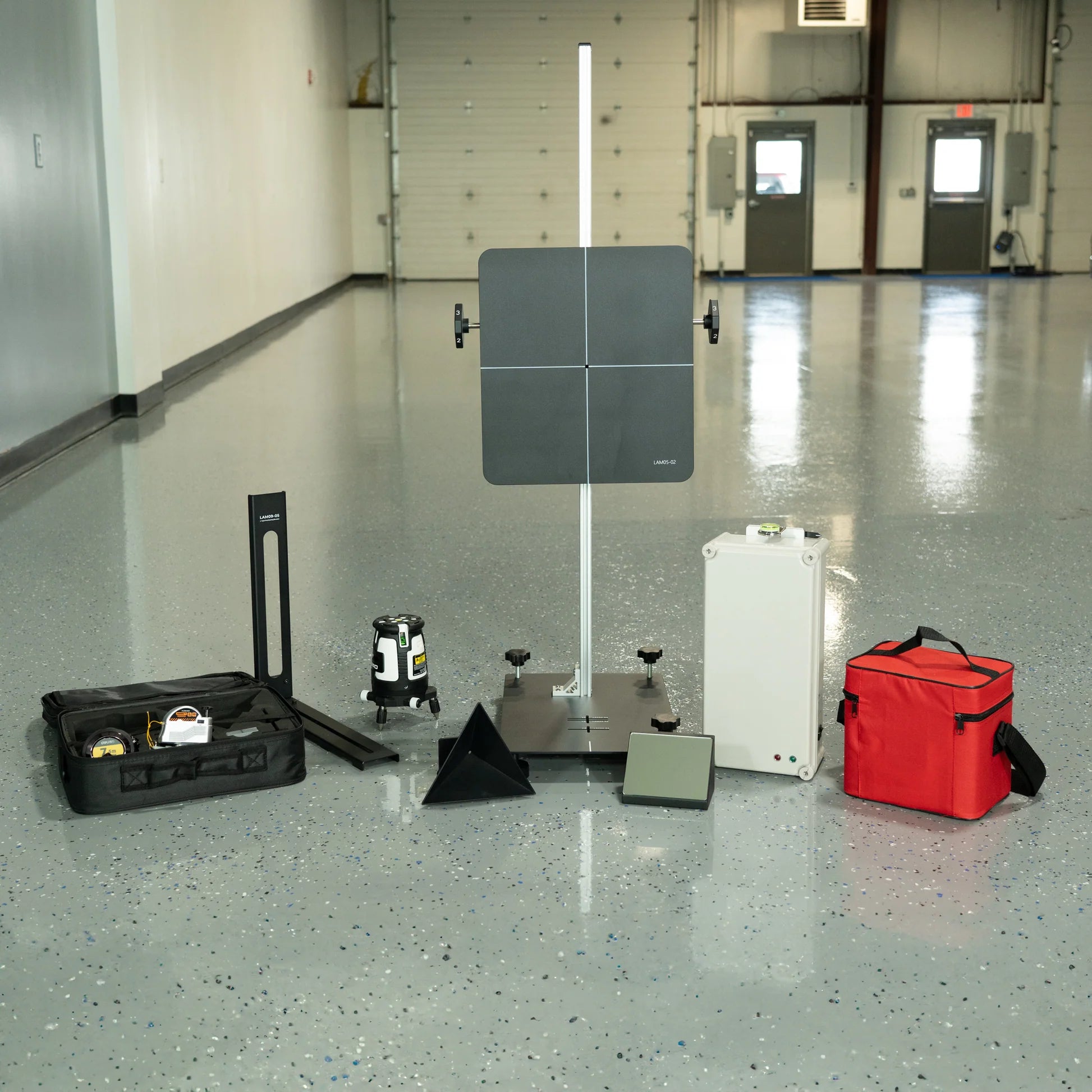

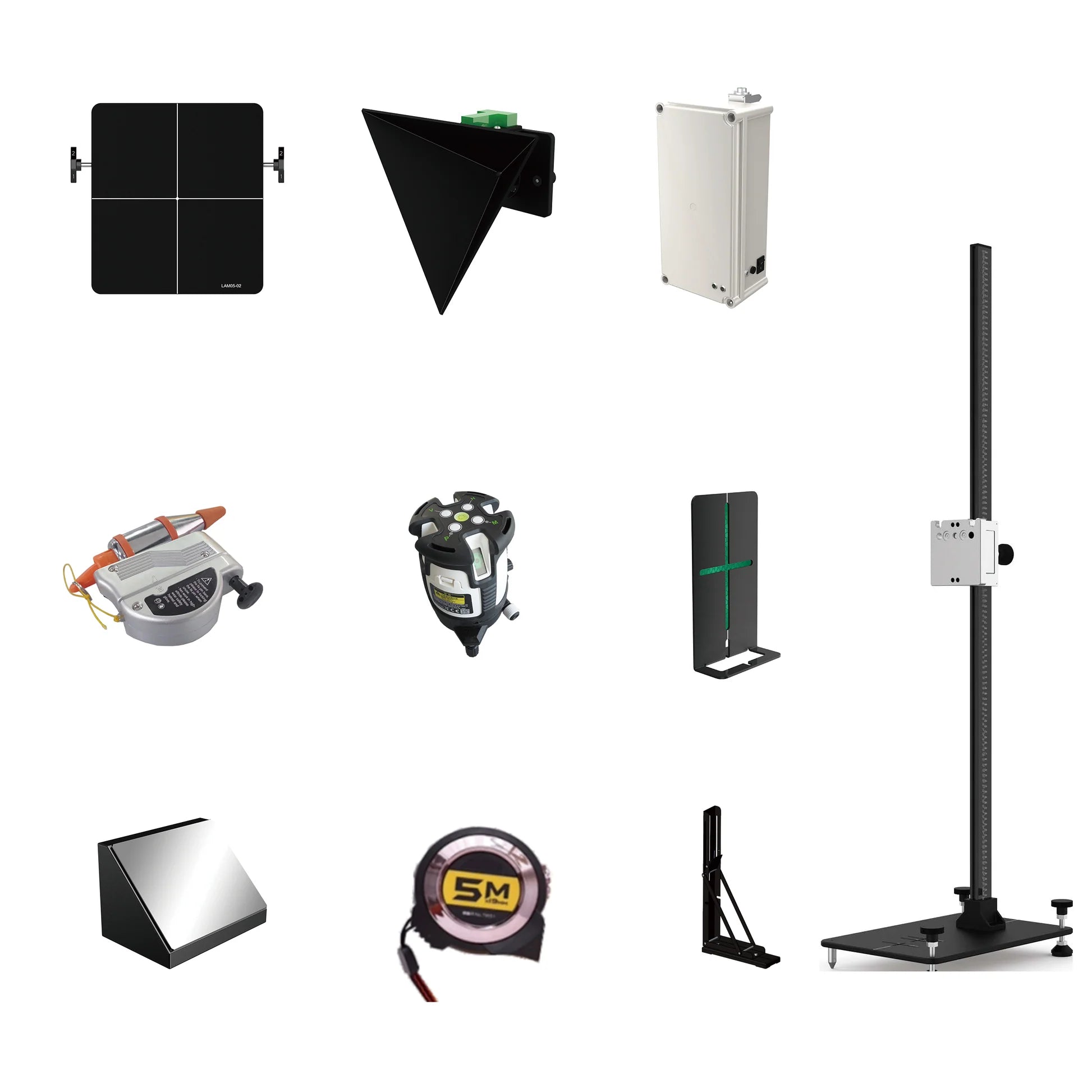

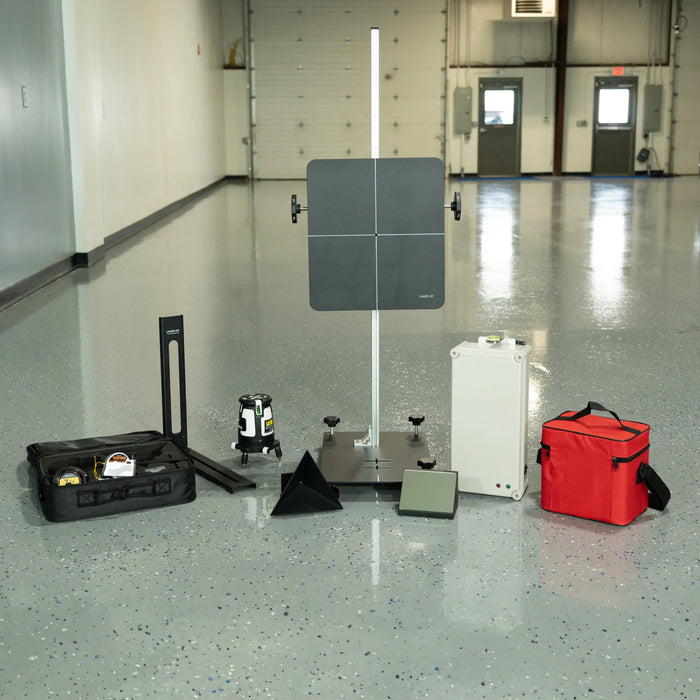

What's in the box

  • Main Unit - Stand
  • ACC Radar Target
  • ACC and BSM Corner Reflector
  • Doppler Simulator
  • 5 Line Laser
  • Plumb Bob
  • Tape Measure
  • Laser Reflector
  • Auxiliary Mirror
  • L-Shaped Positioning Bracket
  • Radar Plate Mounting Adapter

Dimensions & Weight

  • Retail Package Length (inches): 55.91
  • Retail Package Width (inches): 21.26
  • Retail Package Height (inches): 13.78
  • Retail Package Weight (lbs): 98.61
