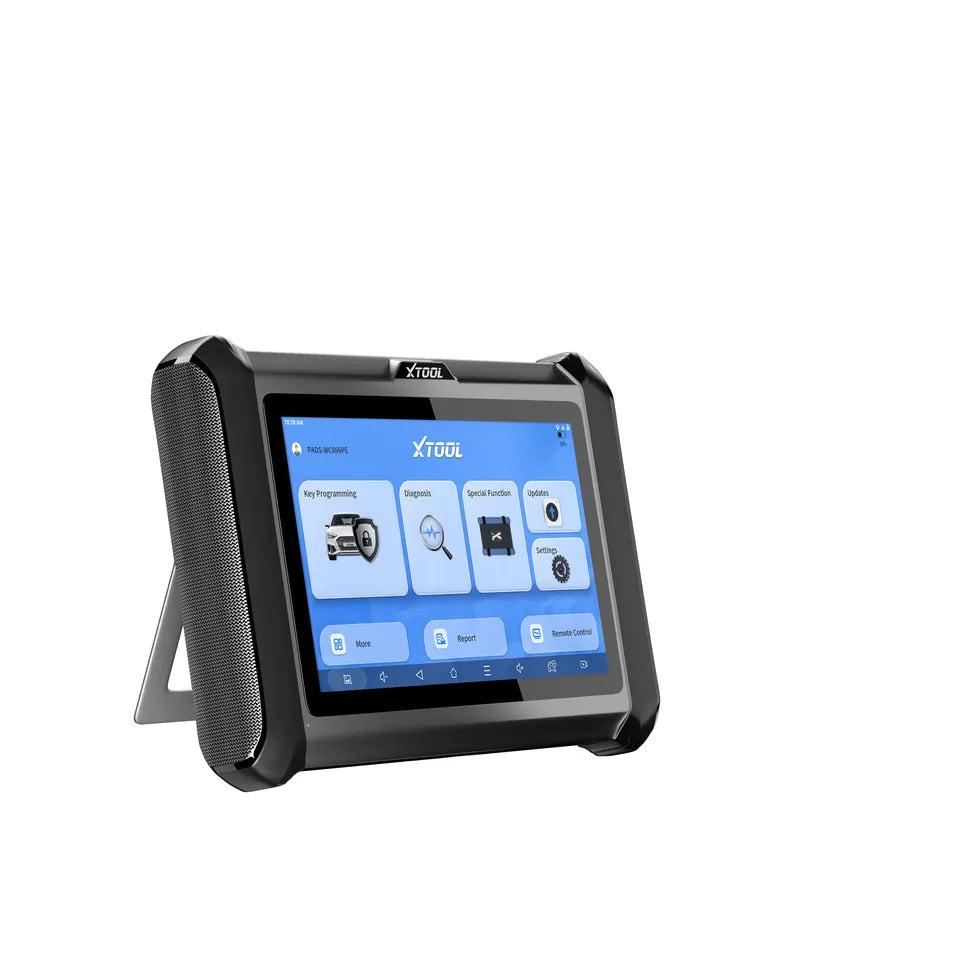

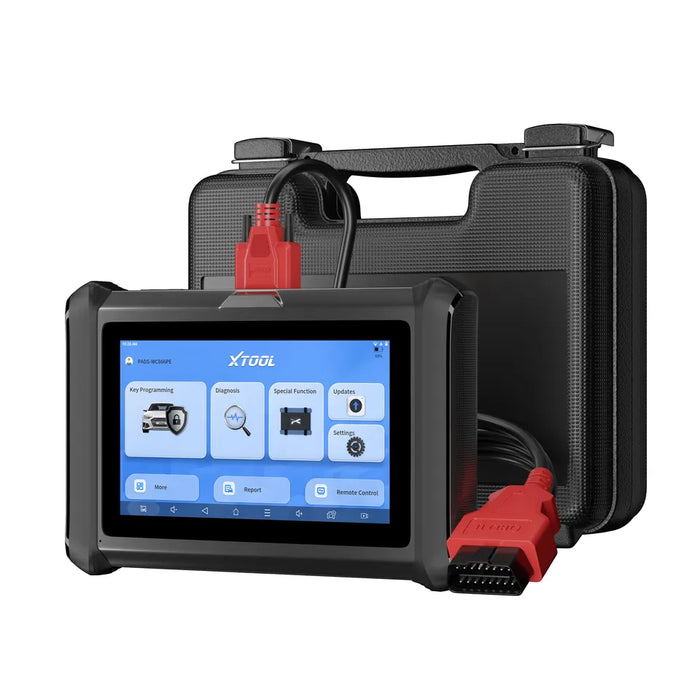

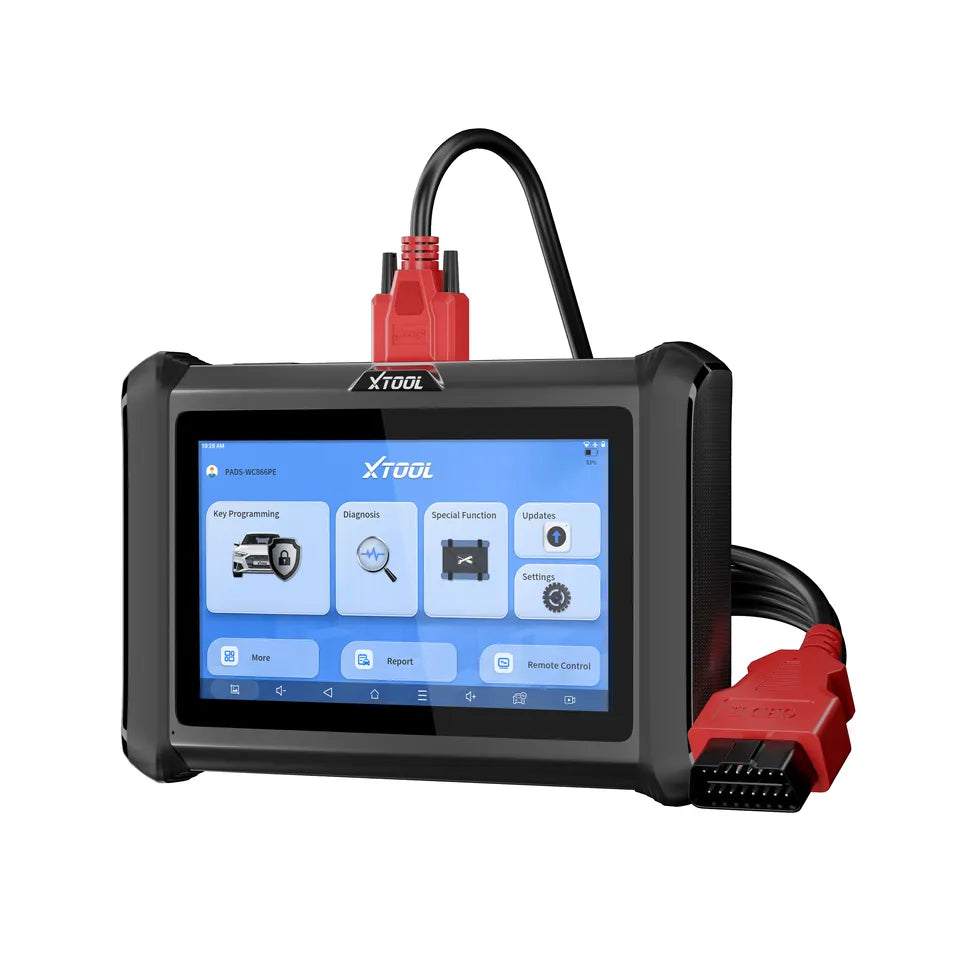

XTOOL X100 PadS Full System Diagnostic Scan, Key Coding, Odometer Correction

Xtool X100 PADS Auto Key Programmer Full system diagnostic Scanner

Update version of X100 PAD and PAD Plus, with Built-in CAN FD and DoIP protocols
Full system diagnostic + AutoVin + 23 Special Functions + Advanced Key Programming (Need KC100) Multi-language

• Upgraded Ver. of X100 PAD & X100 PAD PLUS with New UI, Add 8MP Camera, Self test, Collapsible stand.
• Support DoIP & CAN FD
• Key Programming: Work with KC100/KC501. to add keys for Mercedes, for Toyota etc. Read PIN codes, program new keys/fobs, perform remote learning, disabIe the lost keys etc.
• Built-in 5,000mAh battery larger than XTOOL D7 which includes 4,000mAh battery. long-time Working Battery.
• Can work with XTOOL XV100: Help you better check the vehicle by viewing details via the endoscope.
• 23+ Special Functions
• Powerful quad-core 1.5GHz processor with faster 2GB and reliable 64GB On-board memory, Dual-band wifi
• 2 Years Free Update
• Support 15 Languages: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese. When you get the device, send us the seial number to change language for you.

XTOOL X100 PADS Functions:

IMMO Key Programming: Read PIN, Add Transponder/Smart Key, Disable Lost Keys, Remote Learning, Make Dealer Key/All-Key-Lost, IMMO CAR MO Reset/Coding,IMMO Data Backup, Key programmer, Key Learning/Key Matching, EEPROM Read & Write, etc.

All System Diagnostics: Access and scan on 80+ vehicles and all available models including ABS, SRS, TCM, Brakes, BCM, TPM and etc to read and clear codes, view live data, freeze frame, and retrieve CAR MO info.

23+ Special Functions: Oil Reset, EPB, BMS Reset, Immo/Key grammer, Throttle Relearn, SAS Adjustment, EEPROM Adapter, Refresh Hidden Function, Injector Coding, ABS Bleeding, Tyre Pressure Reset, Performance Tire Upgrade, Gearbox Match, Headlight, Air Suspension, etc.

Support CAN FD/DoIP Protocols: With CAN FD protocol covers for GM MY2020+ models. No extra CAN FD adapter needed. With DoIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.

Advance Hardware Configuration:

• Product Name: X100PAD S
• Operating System: Android 10
• Processor: Quad Core 1.5Ghz
• Memory: 2+64G
• Screen Size: 7 Inches (1024*600)
• Mode of Operation: Tablet Touch Screen
• Connection Method: WIFI Connection
• Battery Capacity: 5000 mAh
• Upgrade Method: WIFI Online Upgrade
• Upgrade Period: 2 Years
• Charging Method: Adapter Charging
• Support: CAN FD & DOIP Function
• USB Interface: USB2.0 (Supports KC100/KC501)
• WIFI: 2.4G/5G

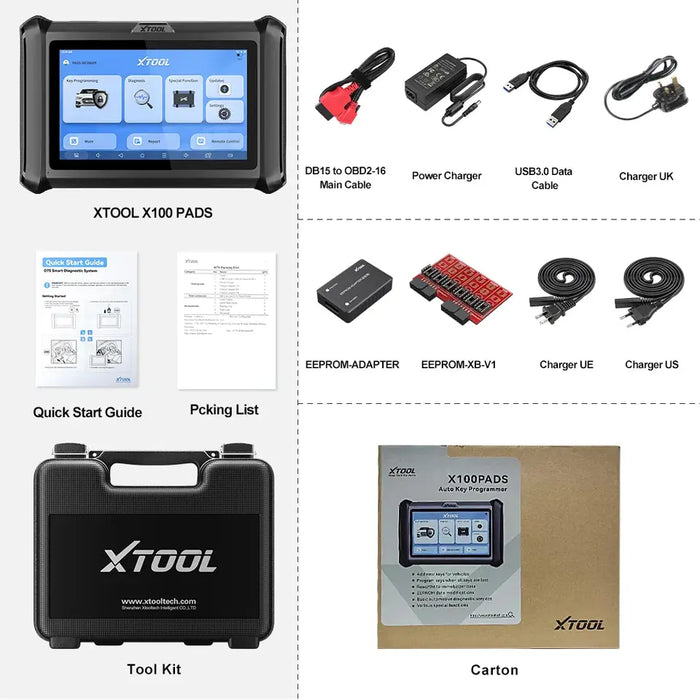

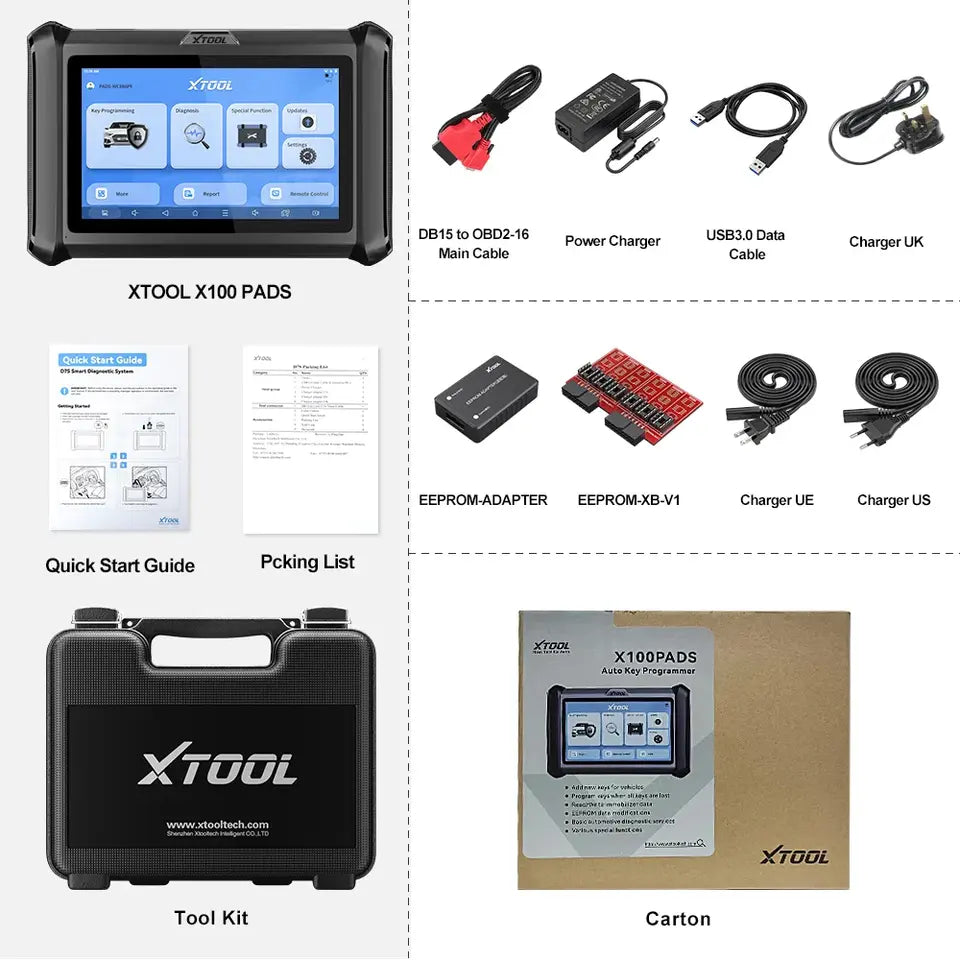

X100PADS Packing List:

• 1PC X X100PADS Main Unit
• 1PC X Quick Start Guide
• 1PC X DB15 to OBD2-16 Main Cable
• 1PC X Power Charger
• 1PC X EEPROM-ADAPTER
• 1PC X EEPROM-XB-V1
• 1PC X USB3.0 Data Cable
• 1PC X Charger UE
• 1PC X Charger US
• 1PC X Charger UK
• 1PC X Packing List
• 1PC X Tool Kit
• 1PC X Carton
